Issues when there are multiple attributes and you permute them

Product version
astah* professional 7.0

There are two issues in the ER entities with multiple attributes created in a certain way.

  • Wrong attributes would be selected when selecting attributes by an arrow key with [Shift] key down
  • [Del] key deletes wrong attribute

This happens in the ER Entity that is created in the step below.

1. There is an ER Entity with PK and four attributes like this.

2. Move [Attribute3] up to make it Primary key.

3. Move [Attribute0] down to make it non-primary key

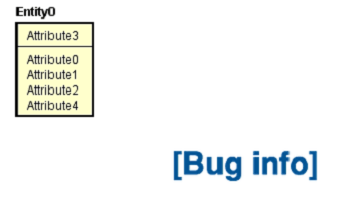

Then you will have this ER Entity that causes this behaviour.

This will be fixed in the future release.

Bug ID
