In the project file, models and presentations exist. The presentation has information on the appearance of the element. In many cases, the Astah API obtains information from these and rewrites it. If you use the API, you need to know what the model and presentation interface is. You can know it by looking at the List of supported models but it is a bit troublesome. So I wrote a script. Let’s easily examine the interface using this.
Are you using a Script Editor?
I want you to use it, this plug-in is pre-installed if you are using Astah Professional version 7.2 or later. If you are using a product that is not included, install it – How to Install.
Let’s use it! It is not difficult.

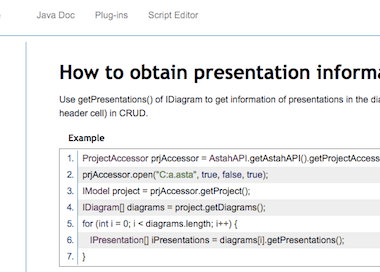

The Astah series has an Astah API.
You may be able to add features that are not in the standard using this. You may also be able to link with other software.
