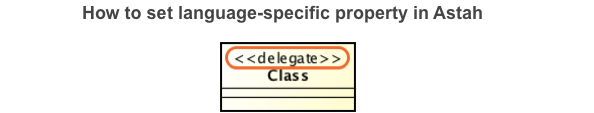

Setting delegate property to a Class


In Astah Professional, Java, C++ and C#’s specific language setting is available.
Here’s an example of setting delegate to a Class.

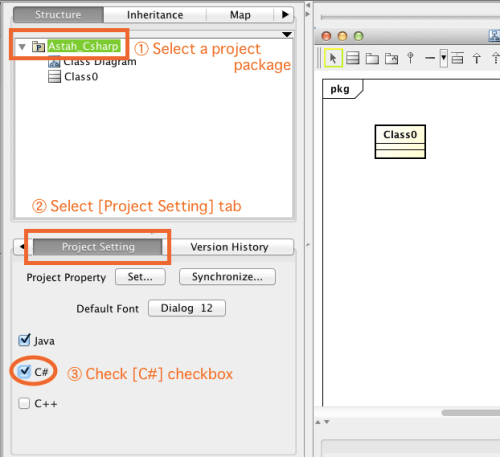

(1) Select a project package in the structure tree
(2) Go to the pane below the tree view and select [Project Setting] tab
(3) Check in the [C#] checkbox
Language_Setting1

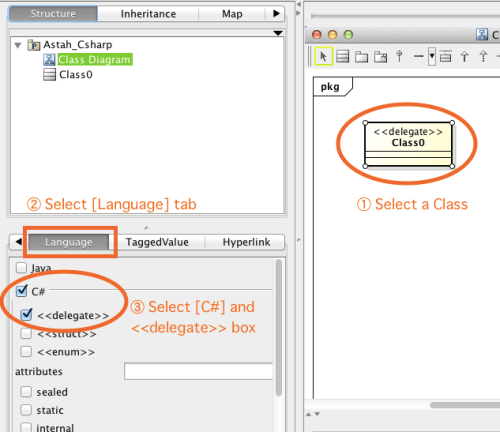

(4) Now select a Class in a diagram and then select [Language] tab in the left bottom pane, then check [C#] – delegate
Language_Setting2

Thanks,
SJ
