Unable to delete the AssociationEnd name from the property view when there are multiple Associations

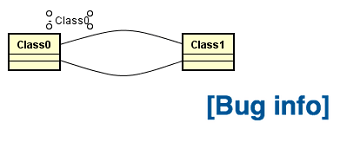

top-en1

Product version
Astah Professional 7.0

Description

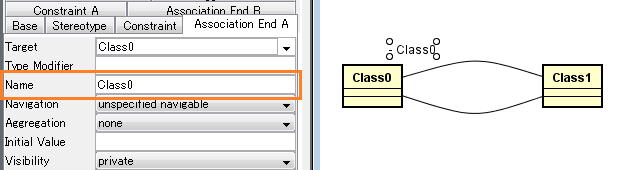

When there are multiple associations between classes in a Class diagram, you’re unable to delete the Association End name from the [AssociationEnd] tab in the property view (left bottom pane).

Status
This will be fixed in the next release.

Solution
Select the AssociationEnd name on the diagram and delete it.

Bug ID
6577
