Diagram name does not appear inside the diagram frame

Product and version

Astah Professional version 8.2


Diagram names do not appear inside the diagram frame for the following diagram types.

  • Class diagram
  • UseCase diagram
  • Component diagram
  • Deployment diagram
  • Composite Structure diagram

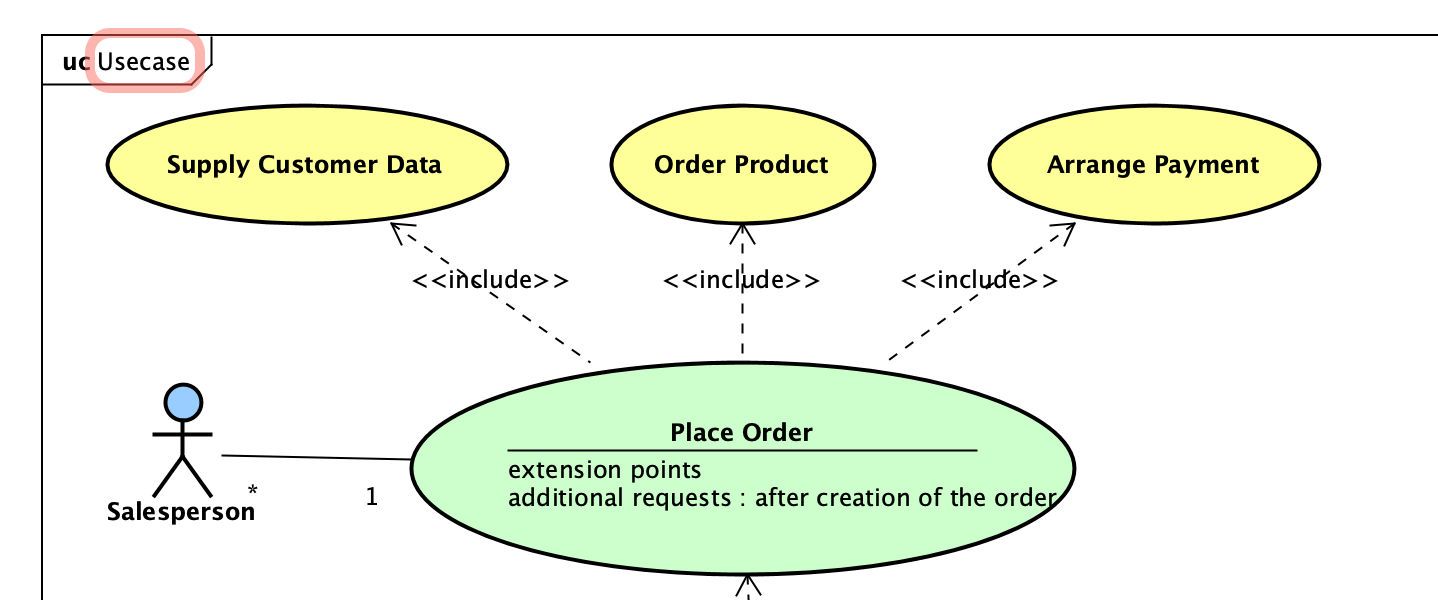

[OK – version 8.1 and earlier]

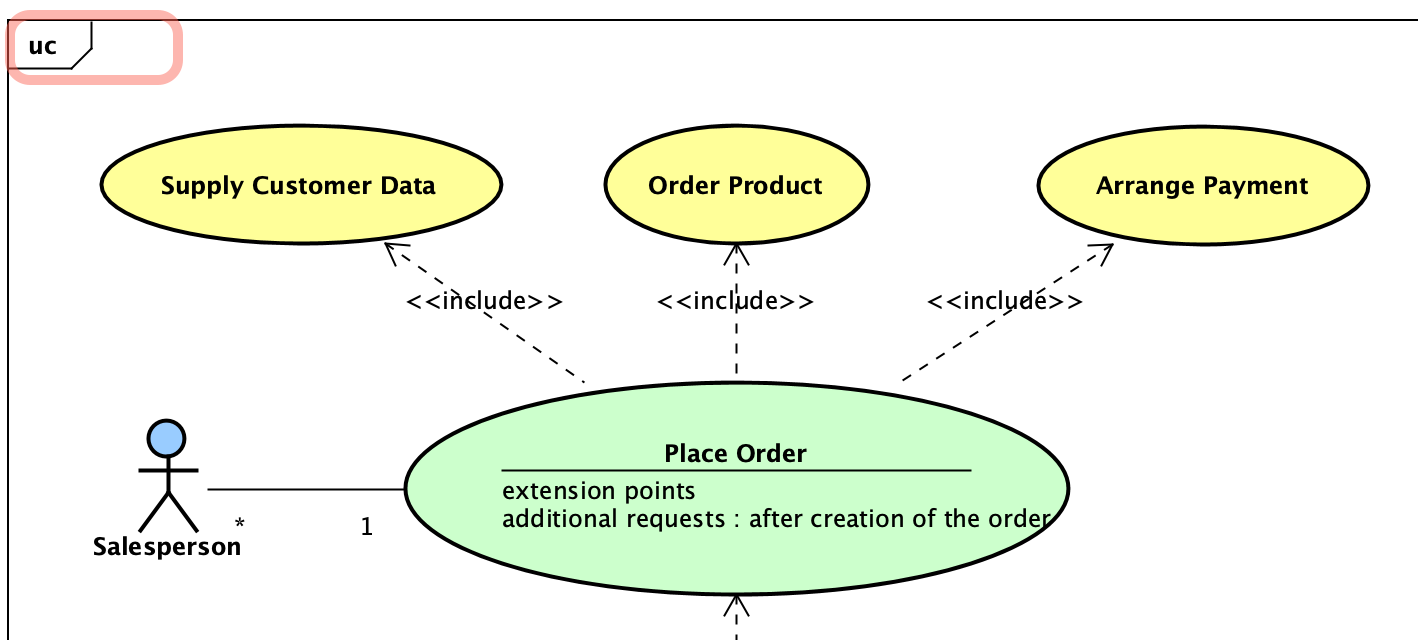

[NG – version 8.2]

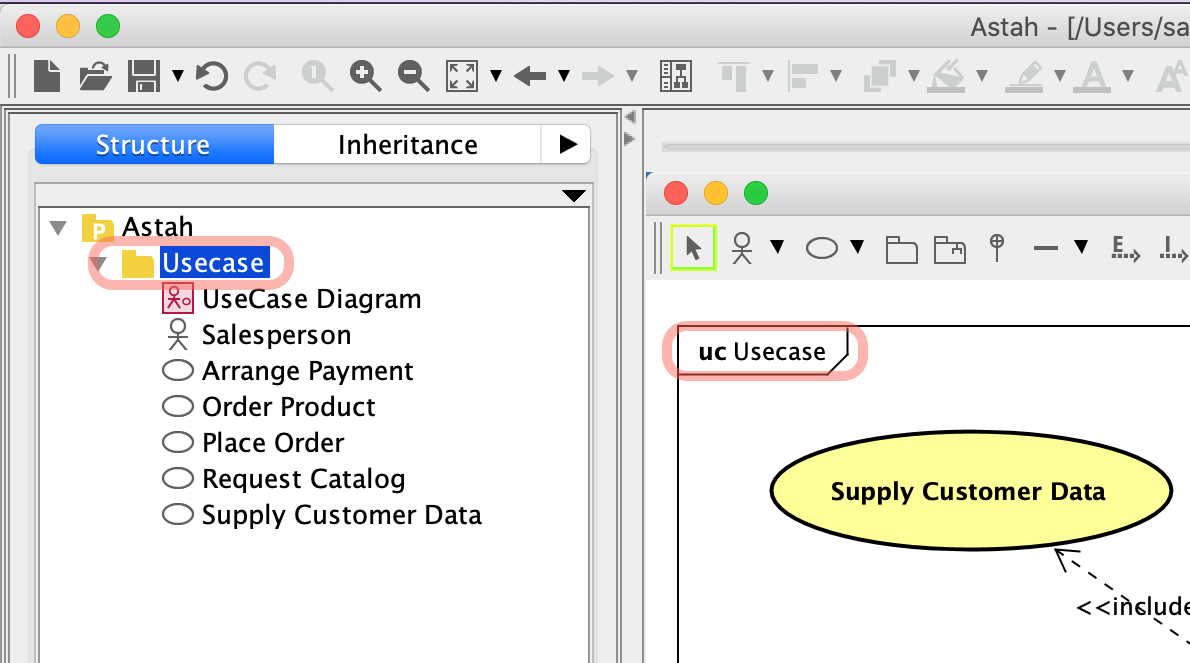

A: Use packages

  1. Move your diagram under a package.
  2. The package name appears in the diagram frame. So rename the package name as you’d like to see in the diagram frame.

B: Use Astah Professional version 8.1
Since this is a degrade in version 8.2, this does not occur in version 8.1.

Many thanks!
Thank you very much for your report, Lone!
