Line presentations in Astah – (1) How to represent Generalizations in shared target style

Sometimes we receive this question:

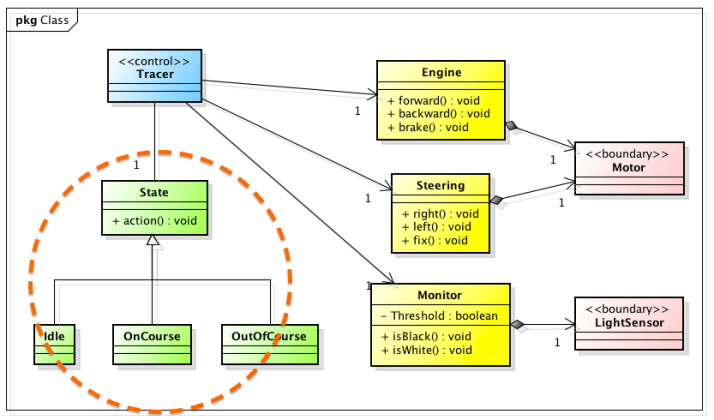

“How could we represent the shared target style like the sample figure below (in red circle)?”

Astah UML Class Diagram
The answer is this.

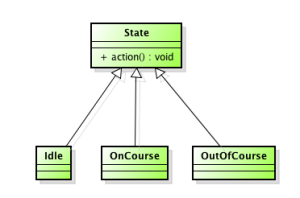

(1) Create Classes and Generalizations to State Class from each Class – this is the separate target style.

Astah_UML_ClassDiagram2

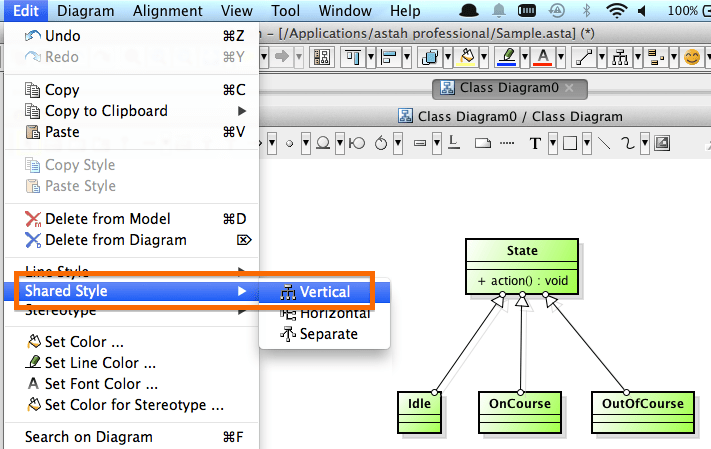

(2) Select the three lines and go to [Edit] – [Shared Style] – [Vertical] from Main Menu.
Astah_Professional_Line_Style

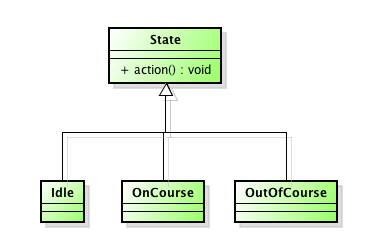

(3) Done!
Astah_UML_ClassDiagram3









Cheers,
SJ
