How to add ER Data Type

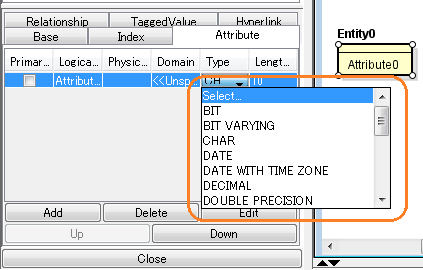

When you set Data Type to ER Entity’s attributes in Astah, you can choose it from the [Data Type] list in the [Base] tab of Attribute’s property view.


add_er_data2















If you cannot find the one you want, you can always add from [ER Data Type] menu. Here is an example of adding one – [VARCHAR2].


■ Step

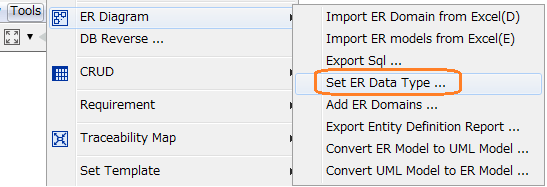

  1. Launch Astah and go to [Tool] – [ER Diagram] – [Set ER Data Type]
  2.
    add_er_data3

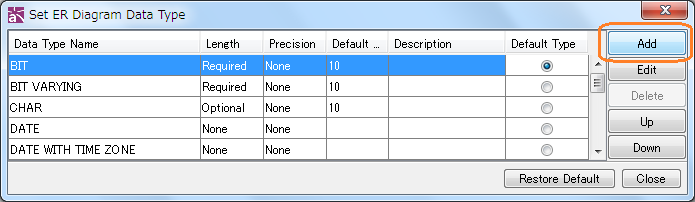

  3. Click [Add] on the [Set ER Diagram Data Type] dialog
  4.
    add_er_data4

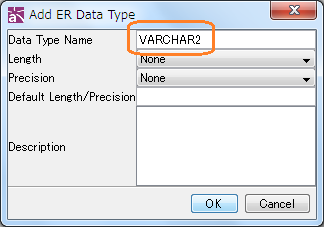

  5. Enter [VARCHAR2] for Data Type Name and the click [OK]. You can set property for the length and precision of data too.
  6.
    add_er_data5

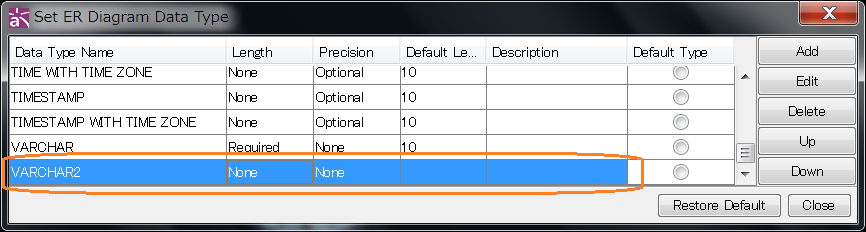

  7. That’s it. Now [VARCHAR2] is in the list!
  8.

    er_add_data1
