Unable to copy Mind Map

Product & Version

Astah Professional Version 7.1

Description

Unable to copy Mind Maps if the Mind Map is using a customized style template that was created in version 7.0 or earlier.

About Customized Style Template

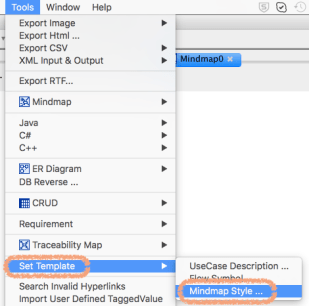

In Astah, you can create a style template for Mind Maps to produce your Mind Map in your favorite design, color, font..etc. from [Tools] – [Set Template] – [Mindmap Style].

astah-mind-map-style-template

Create Mindmap Style Template

Solution

Opening through the configuration windows of the Style Template will fix this issue. Please follow the step below.

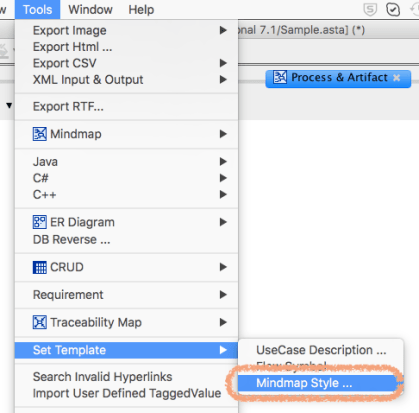

  1. Go to [Tools] – [Set Template] – [Mindmap Style]
    astah-mind-map1
  2.

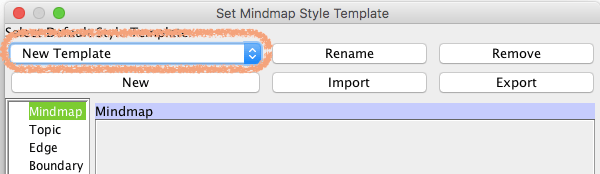

  3. [Set Mindmap Template] dialog opens, select the customized one that is used for Mind Maps that wouldn’t let you copy of.
    astah-mind-map-2
  4.

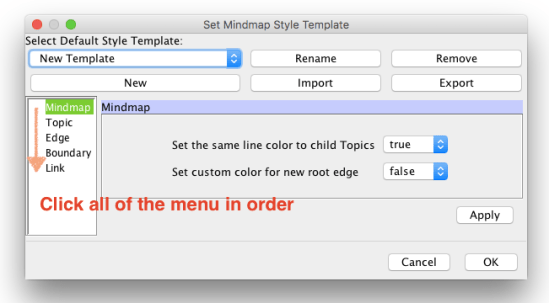

  5. Click through all the menu on the left [Mindmap], [Topic], [Edge], [Boundary] and [Link] to open each setting and then click [Apply] – [OK].
    astah-mind-map-7
  6.

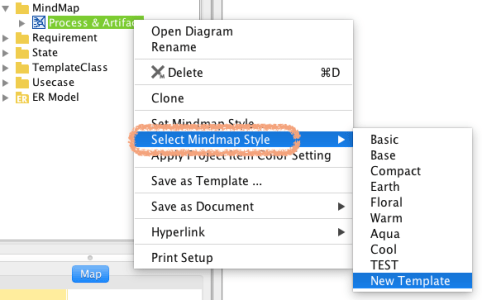

  7. Re-apply this template from Mindmap’s pop-up menu [Select Mindmap Style] menu.
    astah-mind-map-5



Bug ID

6771, 6782

Status

Will fix this in the next release.

Thanks!

Thank you Arnaud for your report.
