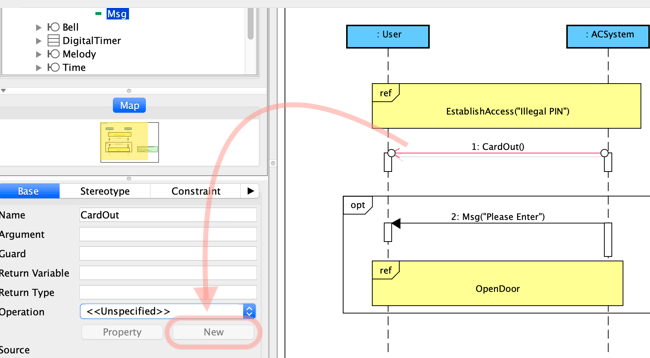

[New] button to add Operation for Messages gets disabled in Sequence Diagram

e382b9e382afe383aae383bce383b3e382b7e383a7e38383e38388-2019-05-22-14.08.40

Product and version

Astah ProfessionalUML and Viewer Version 8.0 and 8.1

Description

There is a regression in a Sequence diagram that a [New] button to add Operation for Messages gets disabled by following the step below:

  1. Click a Message in a Sequence Diagram.
  2. [New] button in the [Operation] field is active if the message doesn’t have any Operation been set.
  3. Open the drop-down list and choose “Unspecified”.
  4. [New] button is disabled even it is in the same condition – the operation is “unspecified”.

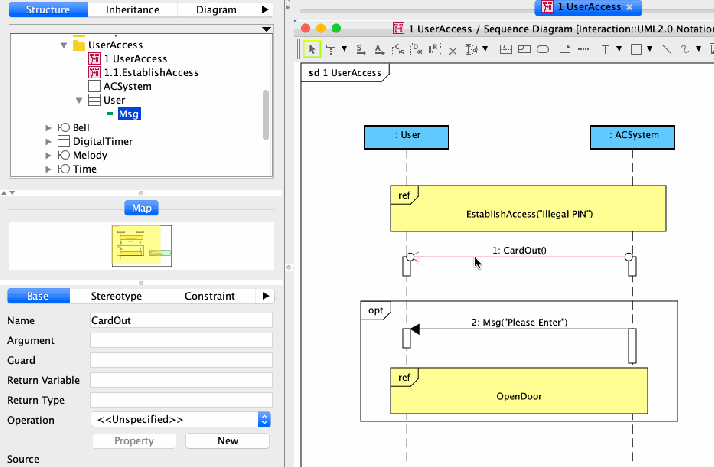

  5. Sequence-Message2

Workaround

Release the Message and select it again will make the [New] button active again.

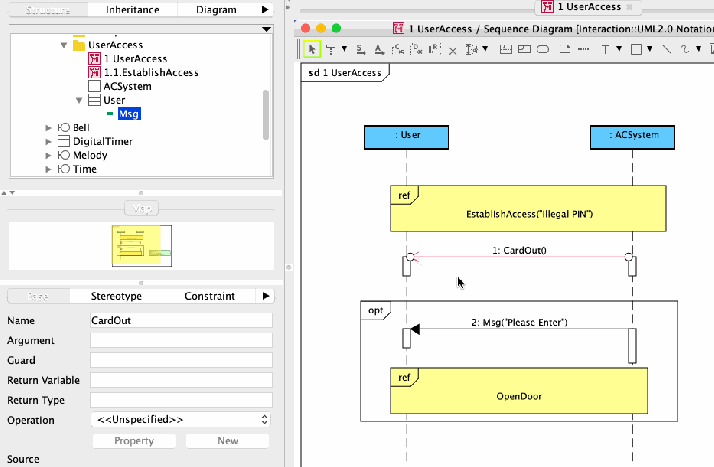

Sequence-Recover

Plan to fix

Will fix in the next update which we plan in this Fall.

e382b9e382afe383aae383bce383b3e382b7e383a7e38383e38388-2019-05-22-14.08.40

Bug ID

7567
e382b9e382afe383aae383bce383b3e382b7e383a7e38383e38388-2019-05-22-14.08.40

Thanks!

Thank you very much Randal for reporting this bug!
