How to keep diagram view same & clean among different platforms

Hello, this is Lily.
As you know, Astah is a cross-platform application – works on Windows, Linux and Mac.
So I’m using Astah on Ubuntu and Windows but one thing used to bug me. So I’ll share my past-pet peeve I had and its solution with you.
Usually I create a file on Ubuntu and later on I will open it on Windows. When I open it, diagram view gets a bit off.. like text sticking out from the box..etc.


This happens because I use different font styles between Ubuntu and Windows. So using the same font style on both machines is a solution – how simple is that.

Open a font chooser dialog (Refer to “Change Font in diagrams“). Logical font is set as Astah’s default font.

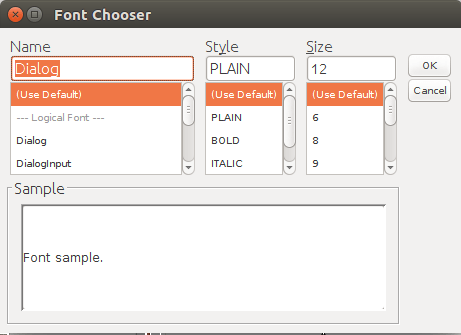

font_dialog_dialog

Change the font style to something that works on both machines. (I personally like IPA Fonts, so I downloaded it on my Ubuntu and Windows.).

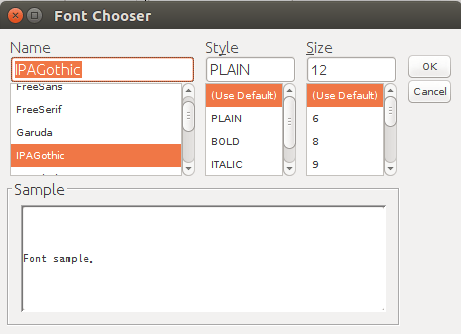

font_dialog_ipafont

Once I’ve made the font setting consistent between Ubuntu and Windows, the diagram view never goes off, and I won’t have to fix each box to let the text fit inside..etc.!

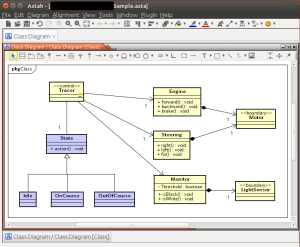

ubuntu_ipafont_sample

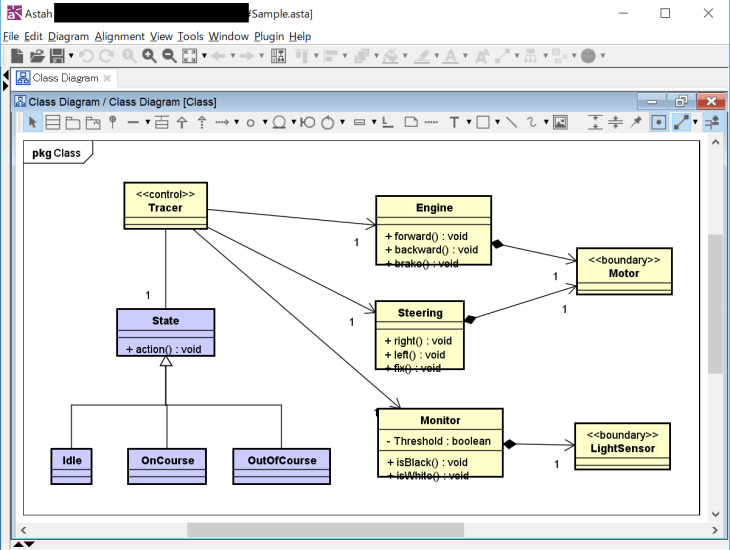

windows_ipafont_sample

If you are using multiple machines for yourself or often exchange .asta files between team members, you’d better set the same font for Astah on all the machines!
